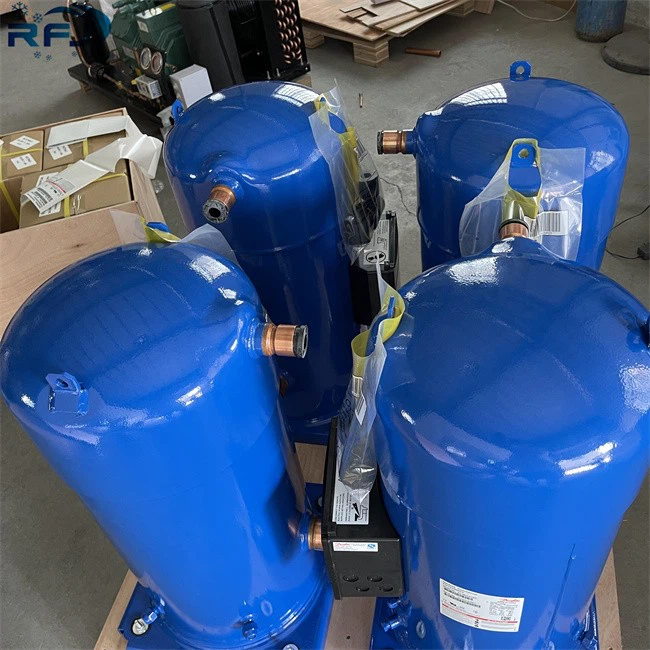

SY Series Danfoss Scroll Chiller Compressor

SY Series Danfoss Scroll Chiller CompressorSY380A4 CBE



Danfoss kev txhawb nqa kev tsim qauv rau kev ua haujlwm siab thiab kev siv cov tub yees lwm lub teeb rau kev lag luam, kev lag luam thiab kev lag luam HVAC xws li cov chav nyob hauv ru tsev, chillers, txheej txheem txias, ntim khoom thiab lwm yam.



Paub meej:

Qauv:	SY380A4 CBE	Ntau zaus (Hz):	50/60
Tswj peev xwm:	Tsau ceev	Keeb kwm ntawm qhov chaw:	Tuam Tshoj
Roj Nqi (L):	8.4	Ntawv pov thawj:	CE / UL
Lub peev xwm txias (kW):	85.4	Kev sib hloov ceev ntawm 50Hz (rpm):	2900
Roj hom:	POE	Kev sib hloov ceev ntawm 60Hz (rpm):	3500
RLA:	56.4A	High Side TS Min:	-35 degree
High Side TS Max:	150 degree	Net Nyhav (kg):	163.66



Danfoss 12 HP R410A cua txias compressor

Cov ntaub ntawv khoom:

Khoom npe: Danfoss Scroll Compressors

Qauv: SY380A4CBE

MOQ: 1 pcs

Voltage: 380-400V ~ 3Ph ~ 50HZ / 460V ~ 3Ph ~ 60Hz

Daim ntawv thov: HVAC



Nqe lus piav qhia:

---

Lub tes tsho tawm: Lub tes tsho Solder, P10 (1-3/4" rotolock, 1-3/8" ODF)

Voltage/Frequency: 380-460V/3/50-60Hz

Hom npe: Compressor

Tshem tawm gasket: Gasket, 1-3/4"

Discharge kub tiv thaiv Nqe lus piav qhia: Cov khoom siv Dischargethermostat

Tawm valve: Rotolock valve, V10 (1-3/4" rotolock, 1-3/8" ODF)

Cov lus piav qhia roj: POlubricant, 320SZ, 1-litrcan



Cov txiaj ntsig tseem ceeb ntawm SY380A4CBE:

---

1. Kev siv hluav taws xob zoo: Nws muaj kev siv hluav taws xob zoo heev, uas tuaj yeem txo qis kev siv hluav taws xob thiab cov nqi khiav lag luam.

2. Kev ua haujlwm siab: Muab cov tub yees ua tau zoo thiab tsim nyog rau ntau yam kev siv tub yees.

3. Kev ntseeg tau: Danfoss yog cov chaw tsim khoom muaj kev ntseeg siab heev nrog cov khoom lag luam txhim khu kev qha thiab lub neej ntev.

4. Kev tiv thaiv ib puag ncig: Ua raws li cov qauv kev tiv thaiv ib puag ncig thiab pab txo qhov cuam tshuam rau ib puag ncig.

5. Flexibility: Haum rau ntau yam sib txawv ntawm cov tub yees sib txawv thiab daim ntawv thov scenarios, nrog rau kev siv dav.



Peb cov kev pabcuam:

---

1. Txhawb ntau txoj kev them nyiaj, txhawb kev txiav txim los ntawm txhua lub teb chaws thiab muab kev pabcuam thoob ntiaj teb.

2. Peb ua qhov tseem ceeb ntawm kev ceev ntiag tug thiab kev ceev ntiag tug ntawm peb cov neeg siv khoom lag luam kev lag luam. Koj qhov kev lag luam kev lag luam nrog peb yuav nyob twj ywm tsis pub lwm tus paub thiab yuav tsis qhia tawm rau lwm tus neeg sab nraud yam tsis tau koj tso cai.

3. Peb tau cog lus rau kev xa cov khoom zoo heev uas ua tau raws li koj qhov kev cia siab. Peb cov khoom raug kuaj xyuas nruj kom ntseeg tau tias lawv muaj kev ntseeg siab thiab ua haujlwm zoo. Tsis tas li ntawd, peb muab cov kev xaiv kho kom haum rau peb cov khoom raws li koj cov kev xav tau tshwj xeeb thaum tswj tus nqi tsim nyog.





FAQ:

---

Q: Vim li cas lub compressor vibrate ib lub sij hawm luv luv tom qab pib?
A: 1. nqus tau cov roj los yog kua ntau dhau
2. Lub compressor accumulates roj thiab kua tawm tsam tshwm sim



Q: Yuav ua li cas txog cov kev pab cuam thiab tom qab muag?

A: Guarantee zoo, lub sijhawm lav yog 1 Xyoo.



Q: Dab tsi yog qhov malfunction ntawm tub yees compressors?

A: Cov tub yees compressor yuav muaj ntau yam txhaum xws li compressor tsis pib, condenser txhaum, evaporator txhaum, refrigerant to thiab lwm yam.

Cim npe nrov: sy series danfoss scroll chiller compressor, manufacturers, lwm tus neeg, Hoobkas, pheej yig, hauv Tshuag
