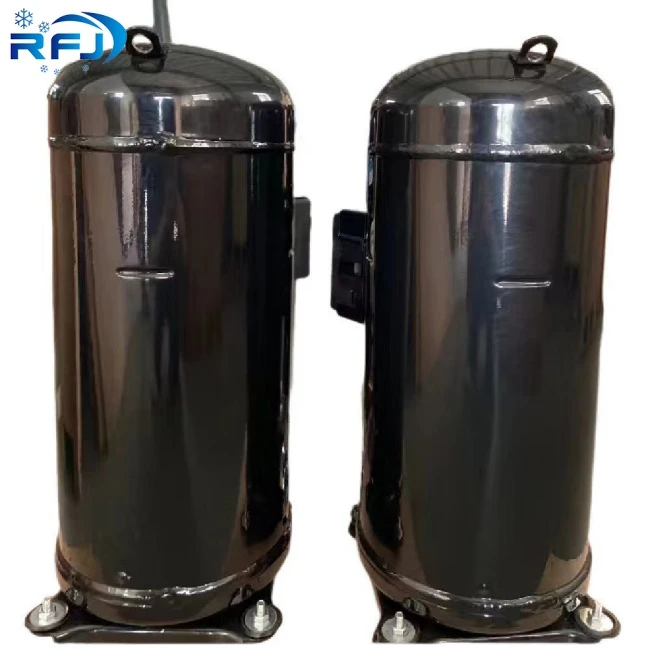

Refrigerant Copeland Scroll Hom Compressor
1.Product introduction Model: ZR36K3E-TFD-522 Nominal hp: 3 R407C muaj peev xwm (kW): 8,450 C0P: 3,14 Tawm (m3/h): Stub Suction (inch): Stub Tawm (inch): Roj Quantity (l): 1.24 Length/Width/Height(mm): Net Nyhav (kg): 27.2 Motor Version/Code 1 ph: 3 ph: Maximum Operating Current (A) 1...
Hauj lwm lawm
1.Product introduction
Qauv: ZR36K3E-TFD-522
npe hp:3
R407C muaj peev xwm (kW): 8,450
C0P: 3,14
Kev xa tawm (m3 / h):
Lub tshuab nqus tsev twj (inch):
Lub cev muaj zog (inch):
Roj kom muaj nuj nqis (l): 1.24
Ntev / Dav / Qhov siab (mm):
Net Nyhav (kg): 27.2
Motor Version/Code
1 ph:ua.
3 ph:ua.
Maximum ua haujlwm tam sim no (A)
1 ph:ua.
3 ph:ua.
Xauv Rotor tam sim no (A)
1 ph:ua.
3 ph:ua.
Sound Pressure @1 m-dB(A): 57.0
| Qauv | HP | CAPACITY(W) | Lub zog hluav taws xob (KW) | NYEEM NTXIV CURRENT(A) | Net nyhav (KG) | HEIGHT (MM) | SUCTION |
| ZR24K3-TFD-522 | 2 | 5920 | 1.87 | 4.3 | 25.9 | 383 | 19/12 |
| ZR28K3-TFD-522 | 2.5 | 6910 | 2.15 | 5 | 26.3 | 383 | 19/12 |
| ZR34K3-TFD-522 | 2.8 | 8200 | 2.52 | 5.7 | 28 | 406 | 19/12 |
| ZR36K3-TFD-522 | 3 | 8900 | 2.7 | 5.7 | 28 | 406 | 19/12 |
| ZR42K3-TFD-522 | 3.5 | 10100 | 3.12 | 7.1 | 28.6 | 419 | 19/12 |
| ZR47KC-TFD-522 | 4 | 11500 | 3.53 | 7.2 | 28.6 | 436 | 22/12 |
| ZR54KC-TFD-522 | 4.5 | 12900 | 4.03 | 8.7 | 35.4 | 457 | 22/12 |
| ZR57KC-TFD-522 | 4.8 | 13700 | 4.16 | 8.7 | 35.4 | 457 | 22/12 |
| ZR61KC-TFD-522 | 5 | 14600 | 4.43 | 10 | 35.8 | 457 | 22/12 |
3.Product feature thiab daim ntawv thov:
• Copeland Scroll ™ axial thiab radial ua raws rau kev ntseeg siab thiab ua haujlwm zoo
• Wide scroll line-up hauv R407C thiab R134a
• Tsawg TEWI (tag nrho qhov sib npaug sib npaug ua kom sov)
• Tsawg suab thiab vibration theem
• Tsawg roj ncig tus nqi
• Copeland® tsim nyog tandem thiab trio configurations rau superior raws caij nyoog efficiency (ESEER)
4.Cov ntaub ntawv ntau lawm
Hom Lub Npe: EMERSON
Connection: SOLDER
Lub tog raj kheej: 0
Qauv nab npawb:ZR36K3E-TFD-522
Net nyhav (KG): 27.2
NOMINAL HP (PK): 3
Roj POE: REFRIGERANT: R407C
TECHNOLOGY: QHIA
HOM DESIGNATION: HERMETIC
Lub Hwjchim (VOLT): 380V 50HZ 3P
5.FAQ
1). Koj tus MOQ yog dab tsi?
---Peb MOQ feem ntau yog 1 teeb.
2). Tus nqi yog dab tsi?
---Tus nqi yog nyob ntawm seb muaj pes tsawg
3). Koj lub sijhawm xa khoom yog dab tsi?
---Lub sijhawm xa khoom yog 3-10 hnub ua haujlwm tom qab them nyiaj.
4) Koj cov khoom tseem ceeb yog dab tsi?
1.Scroll: Copeland, Danfoss ua yeeb yam, hitachi, Daikin, Sanyo
2. Piston: Maneurop MT, NTZ, MTZ series.
3.Semi-hermetic: Copeland, bitzer
