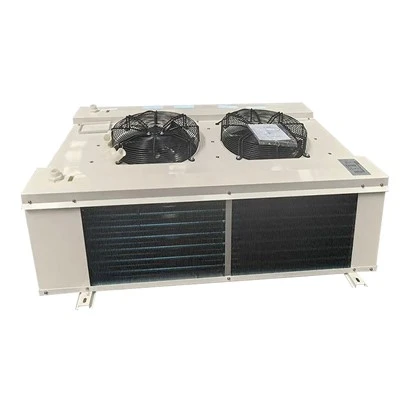

Evaporator Txias Chav
Hom Lub Npe: RFJ
Tus Qauv Zauv: DSD-26.2/140
Lub tub yees muaj peev xwm: 26.2KW
Nominal Cheeb Tsam: 140㎡
Coil Internal Volume: 24.2L
Ntau tus kiv cua: 4
Hauj lwm lawm
Hmoov-Coated Aluminium vaj tse rau cov khoom siv ruaj khov, Khoom noj khoom haus-Kev siv nyab xeeb
Tsim los rau nruab nrab-cov chaw ua zaub mov kub thiab cov chaw khaws cia tshiab ua haujlwm siab dua 8 degree, chav tsev evaporator txias chav tsev no nta tag nrho cov txhuas txheej sab nrauv nrog cov hmoov du -coated tiav. Cov ntaub ntawv tuav tau zoo tiv thaiv cov dej noo thiab corrosion ntau nyob rau hauv cov zaub mov-qib ib puag ncig, yog yooj yim los ntxuav kom huv si, thiab muaj ib tug huv si, polished zoo uas haum rau standard chav txias setups. Nrog rau 140㎡ tshav kub pauv qhov chaw xa khoom ruaj khov 26.2kW txias tso zis, nws ua haujlwm zoo rau 120-140㎡ chaw cia khoom. Rau qhov project buyers ntsuas nyiaj txiag thiab zoo, nws muaj txhim khu kev qha tsim zoo ntawm ib tug sib tw txias chav tsev evaporator chav tsev nqi, tsis muaj ib tug tsis tsim nyog markup rau yooj yim durability.
Staggered Coils nrog Mechanical Expanding kom ntseeg tau qhov txias txias
Nyob rau hauv lub chav tsev, txias coils yog teem nyob rau hauv ib tug staggered layout thiab ua tiav nrog mechanical tube expanding technology, uas presses tooj liab hlab nrees tiv thaiv aluminium fins nrog xoom qhov khoob. Daim ntawv cog lus nruj no txo qis thermal kuj tseem ceeb, yog li lub tsev tswj kev ua haujlwm zoo ib yam, kev hloov hluav taws xob siab txawm tias tom qab siv ntau xyoo. Peb siv 6 hli dav fin qhov sib nrug rau qhov nruab nrab - qauv ntsuas kub, uas ua rau cov dej khov ua kom qeeb hauv cov khoom noj khoom haus ntub dej thiab txo qis npaum li cas lub voj voog defrost yuav tsum tau khiav. Ua ke nrog kev sib xyaw ua ke thiab cov tais dej defrost tso cua sov, txhua lub voj voog defrost ua tiav sai sai nrog qhov ntsuas kub tsawg kawg hauv chav, txo qis kev pheej hmoo rau khaws cov khoom tshiab thiab cov khoom siav.
Nyob ntsiag to Sab Nraud Rotor Ntxuam nrog Mos Dual -Side Air Distribution
Chav tsev no tau nruab nrog plaub lub tshuab hluav taws xob sab nraud rotor, ua ke nrog dual - sab cua qhov hluav taws xob tsim uas faib cov cua txias thiab sib npaug thoob plaws chav txias. Cov huab cua maj mam, dav dav tsis txhob cuam tshuam ncaj qha rau ntawm cov khoom noj uas tsis tau ntim khoom, tiv thaiv kom tsis txhob ya raws tsis tsim nyog thiab kev puas tsuaj rau cov khoom tshiab thiab cov khoom siav. Sab nraud rotor motors kuj tseem ua haujlwm ntau dua li cov qauv rotor sab hauv, yog li lawv tsis cuam tshuam txhua hnub ntawm - chaw ua haujlwm lossis kev sib txuas lus ntawm cov neeg ua haujlwm hauv kev ua haujlwm tsis khoom. Nws los nyob rau hauv tus qauv qab nthab-mounted tsim nrog universal yeeb nkab kev sib txuas, ua rau nws sib xws nrog feem ntau mainstream tub yees tshuab rau ob qho tib si tshiab kev tsim kho thiab retrofit tej yaam num. Rau kev ua haujlwm ntev - lub sijhawm ua haujlwm, qhov tsis ua haujlwm qis ntawm cov motors no txo qis cov nqi kho mob zoo heev, yog li tag nrho cov nqi ntawm cov tswv cuab nyob qis qis txawm tias qhov tsim nyog chav txias evaporator chav tsev nqi ua ntej.
Parameter Table
| Qauv | DSD-26.2/140 |
|---|---|
| Lub peev xwm txias | 26200W |
| Thaum tshav kub kub- pauv thaj chaw | 140㎡ |
| Tube Volume | 24.2L |
| Inlet / qhov hluav taws xob Coupling | φ25mm / φ48mm |
| Ntxuam Parameters | 4×414W |
| Coil Defrost zog | 9600W |
| Dej Tais Dej Defrost Power | 4800W |
Tuam txhab Profile
Shenzhen Ruifujie Technology Co., Ltd.
Ruifujie yog cov kws tshaj lij cov khoom siv tub yees chaw tsim khoom tshwj xeeb hauv cov cua txias cua txias thiab ua tiav cov kev daws teeb meem txias txias. Peb ua raws li cov qauv kev tswj hwm nruj nruj thoob plaws txhua kauj ruam ntawm kev tsim khoom, thiab muab kev hloov kho OEM / ODM hloov kho kom haum rau qhov sib txawv thiab cov kev cai hauv cheeb tsam. Peb cov khoom siv dav siv hauv kev ua zaub mov, kev xa khoom txias thiab kev lag luam txias cia cov haujlwm thoob ntiaj teb, txhawb nqa los ntawm kev ntseeg siab tom qab- kev muag khoom thiab cov khoom seem.
16+ Xyoo Kev Paub
Hiav txwv- ze ntawm Hoobkas
Kev koom tes ntawm kev thauj khoom
Kev xa khoom thoob ntiaj teb
Cov ntawv pov thawj
FAQ
01.Q: Lub tsev no puas tuaj yeem nruab rau hauv thaj chaw ntug dej hiav txwv uas muaj cua ntsev siab?
02.Puas dual- sab qhov hluav taws xob ua haujlwm zoo dua li ib qho - sab ntev, nqaim txias txias?
03.Puas yog lub qab nthab- mounted unit haum rau qub chav txias retrofitting, thiab nws puas yuav tsum tau hloov loj pipeline?
04.Koj puas tuaj yeem kho cov yeeb nkab sib txuas kom haum rau peb cov tub yees uas twb muaj lawm?
05.Dab tsi yog lub sij hawm txhuas txhuas rau kev txiav txim ntau ntawm cov qauv no?
Tau txais koj daim ntawv txiav txim
Yog tias koj tab tom ua haujlwm ntawm lub rooj cob qhia ua zaub mov loj, chaw xa khoom tshiab lossis qhov project hloov kho qhov txias txias, qhia koj qhov chaw txias txias, lub hom phiaj kub thiab xaj kom muaj nuj nqis nrog peb. Peb pab pawg kws tshaj lij thiab kev muag khoom yuav rov qab los rau koj nrog cov kev daws teeb meem sib txuam thiab cov ncauj lus kom ntxaws sai.
Cim npe nrov: evaporator txias chav, manufacturers, lwm tus neeg, Hoobkas, pheej yig, hauv Tshuag
